- 48.3mm diameter
- Welded base plate
- Includes 14 M6 eyebolts
- Corner transition design
- 316 stainless steel
Couldn't load pickup availability

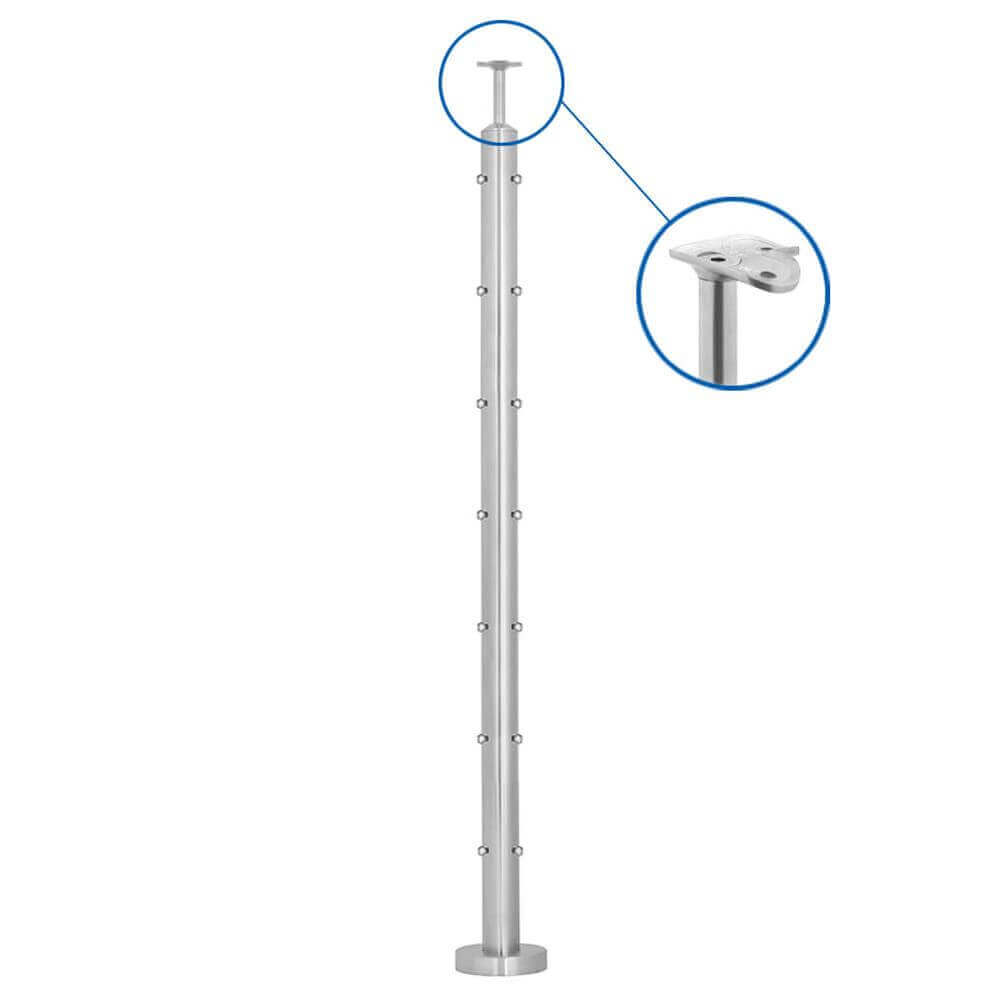

The 14 Hole Wire Rope Corner Post (48.3mm) is a high-strength stainless steel post engineered specifically for corner transitions in wire balustrade systems. Manufactured from premium 316 stainless steel, it delivers superior resistance to corrosion, weather exposure, and structural load, making it suitable for residential and commercial installations, including harsh coastal settings. The post features a robust welded base plate for secure anchoring and includes 14 precision-installed M6 eyebolts, ensuring accurate wire alignment around corner sections. This enables clean directional changes while maintaining consistent tension and spacing across the wire system. The 48.3mm tube diameter offers excellent rigidity and blends seamlessly into contemporary wire rope balustrade designs. Ideal for balconies, terraces, staircases, and perimeter guards, its polished stainless finish enhances visual uniformity while providing long-term durability with minimal maintenance. When paired with appropriate mid posts, end posts, turnbuckles, buckles, and wire rope fittings, it delivers a complete corner solution for modern tensioned cable balustrades.
| Specification | Value |
|---|---|
| Material | 316 Stainless Steel |
| Type | Corner Post |
| Tube Diameter | 48.3mm |
| Heigh | 1100mm (To top of rail) |
| Base Diameter | 120mm |
| Post Weight | 3.7kg |
| Finish | Satin |
| Hole Hardware | 14 × M6 eyebolts included |
| Compatibility | 3mm wire rope |
All wire rope used in this system is manufactured from 316 marine‑grade stainless steel for maximum corrosion resistance.
Yes. All primary components are 316 stainless steel, making the system suitable for harsh coastal and marine environments.
Yes. Installers can cut the 3mm stainless wire rope to any required length using appropriate stainless‑rated cutting tools.
Yes. All fittings are designed for universal compatibility with standard 3mm 316 stainless steel wire rope.
Yes. All posts are supplied fully assembled with welded base plates and plain tops, ready for installation.
Only basic tools are required. Swageless connectors eliminate the need for hydraulic swaging equipment.
Yes, when installed correctly with appropriate handrails and infill spacing, the system meets UK balustrade safety requirements.
Yes. The wire rope system can be installed on straight runs, ramps, and staircases using compatible angled fittings.
316 stainless steel requires minimal maintenance—periodic cleaning with warm soapy water is usually sufficient.
Yes. Wire rope sections can be mixed with glass balustrade sections to create hybrid designs.
Yes. All 316 stainless steel posts in this system are fully suitable for outdoor use, including coastal and high‑exposure environments.
No. End posts, start posts, and corner posts always require eyebolts because they anchor and tension the wire. Mid posts usually do NOT require eyebolts, as the wire typically passes straight through the centre of the post. In certain cases—such as very long runs or unique configurations—mid posts may also use eyebolts, but this is not the standard setup.
