- 316 Grade stainless steel for strength and durability
- Satin finish for a professional appearance
- Provides a clean, safe finish to open handrail ends
- Compatible with 42.4mm handrail tubing
- Compliant with UK building regulations
One of our product specialist will email you with in 24 hours.
Couldn't load pickup availability

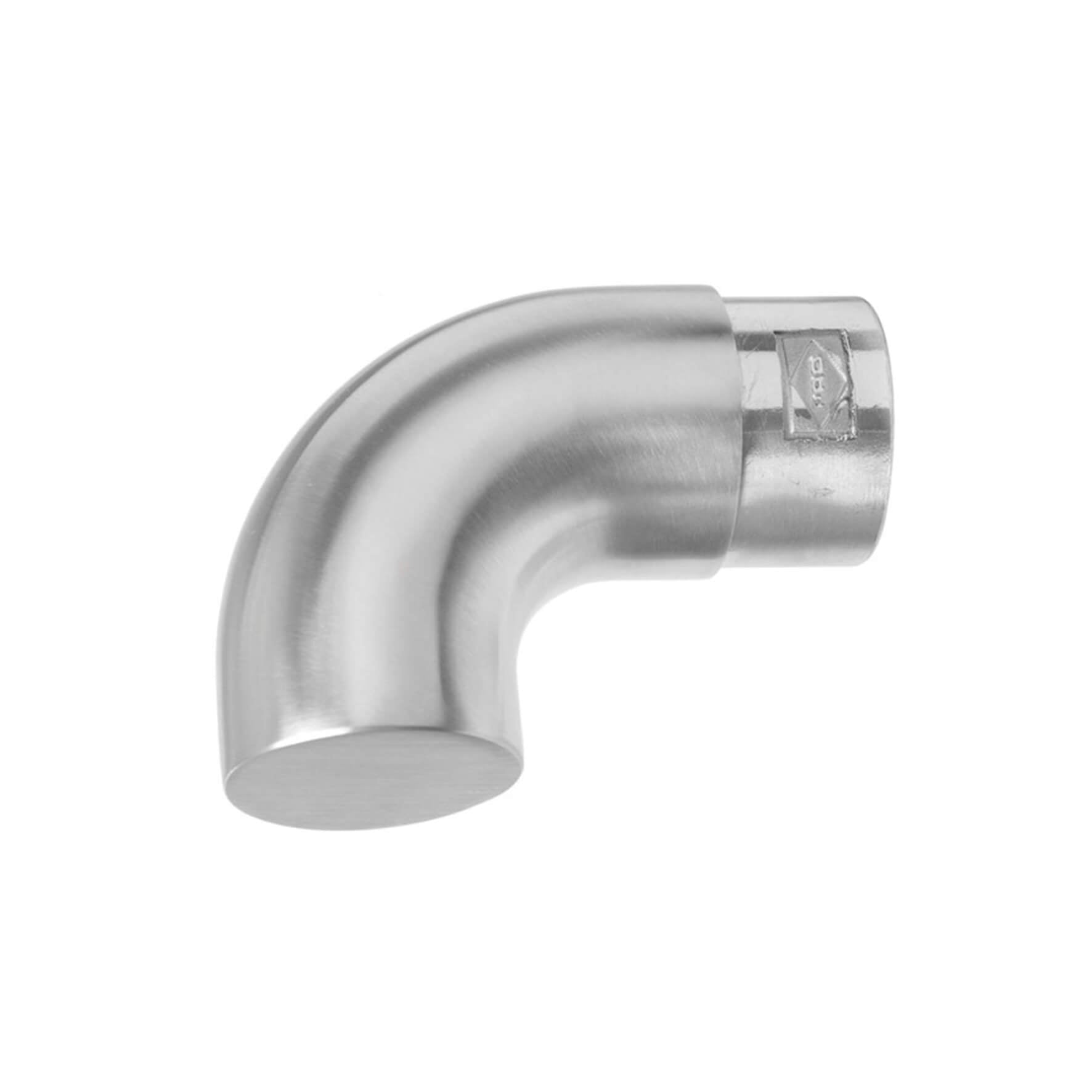

The 90° Flush Angle Scroll End is designed to finish handrails neatly and safely. Manufactured from high-quality 316 stainless steel with a satin finish, it offers excellent corrosion resistance for both indoor and outdoor use. This fitting ensures that open handrail tube ends are securely capped, eliminating sharp edges and providing a professional look. Its precise fit for 42.4mm tubing makes it an essential component for achieving a smooth, continuous handrail system. The scroll design not only improves safety but also adds a refined architectural detail.
| Specification | Value |
|---|---|
| Material | 316 Stainless Steel |
| Colour | Stainless Steel |
| Finish | Satin |
| Diameter | 42.4mm |
| Metal Thickness | 2mm |
| Weight | 0.33kg |
It is possible, but for a consistent appearance we recommend choosing one finish. Customers usually select black for a striking, modern statement and satin for a classic stainless look.
No. Glass is custom cut and non-returnable once manufactured. CAD drawings are always provided for approval before cutting.
No. The black finish is low maintenance and requires only occasional cleaning with warm soapy water. It does not show fingerprints or smudges as readily as polished stainless steel.
Both systems use the same 978mm posts and 900mm glass panels from our Semi Frameless range, but they’re finished differently. The Post Handrail System use saddle fittings on top of the posts to support a stainless-steel tube, creating a continuous, easy-to-grip handrail (ideal for stairs and high-traffic areas). TheSemi Frameless option is topped with post caps for a glass-led look without a tube. For materials, satin components are 316 stainless steel, while black components are 304 stainless steel. Both configurations are designed to meetUK Building Regulations.
Absolutely. The combination of 978 mm posts, 900 mm high glass panels, and the saddle-mounted handrail tube ensures the system meets the height (1100mm) and load requirements of UK Building Regulations for domestic and most commercial applications.
Yes, the Post Handrail System is ideal for stair installations. We recommend using the Handrail Saddle Bracket with Adjustable Spigot, which allows the tube to be aligned at the correct angle to follow the slope of your stairs. This ensures a safe, smooth, and continuous handrail run.
Each saddle bracket is engineered to hold the 42.4 mm stainless steel tube firmly in place. Once the tube is cut to size and positioned on the saddles, it is fixed with screws for a secure installation. The result is a robust handrail that looks seamless and provides reliable support.
The satin stainless steel finish is low maintenance. We recommend periodic cleaning with warm soapy water and a soft cloth to remove dirt and contaminants. Avoid harsh chemicals or abrasive pads.
Installation is straightforward. Pre-drilled posts ensure accurate clamp positioning, and the system is designed for ease of assembly by competent DIYers or professional installers.
Yes. The Satin system is manufactured from 316 marine grade stainless steel, which is highly resistant to corrosion and ideal for use in exposed or coastal environments.
The maximum tested panel width between posts is 1100 mm when using 10 mm toughened glass with clamps. Wider spans can be supplied at customers requested but will not come with any documentation.
Glass panels are held using stainless steel ‘D’ shape clamps with protective rubber gaskets. This avoids the need for drilling into the glass and ensures a safe, professional finish.
