- 316 stainless steel satin finish
- Suitable for 42.4mm round post
- Holds 10–12mm glass panels securely
- Supplied with gaskets
- Easy to install with pre-drilled posts
One of our product specialist will email you with in 24 hours.
Couldn't load pickup availability

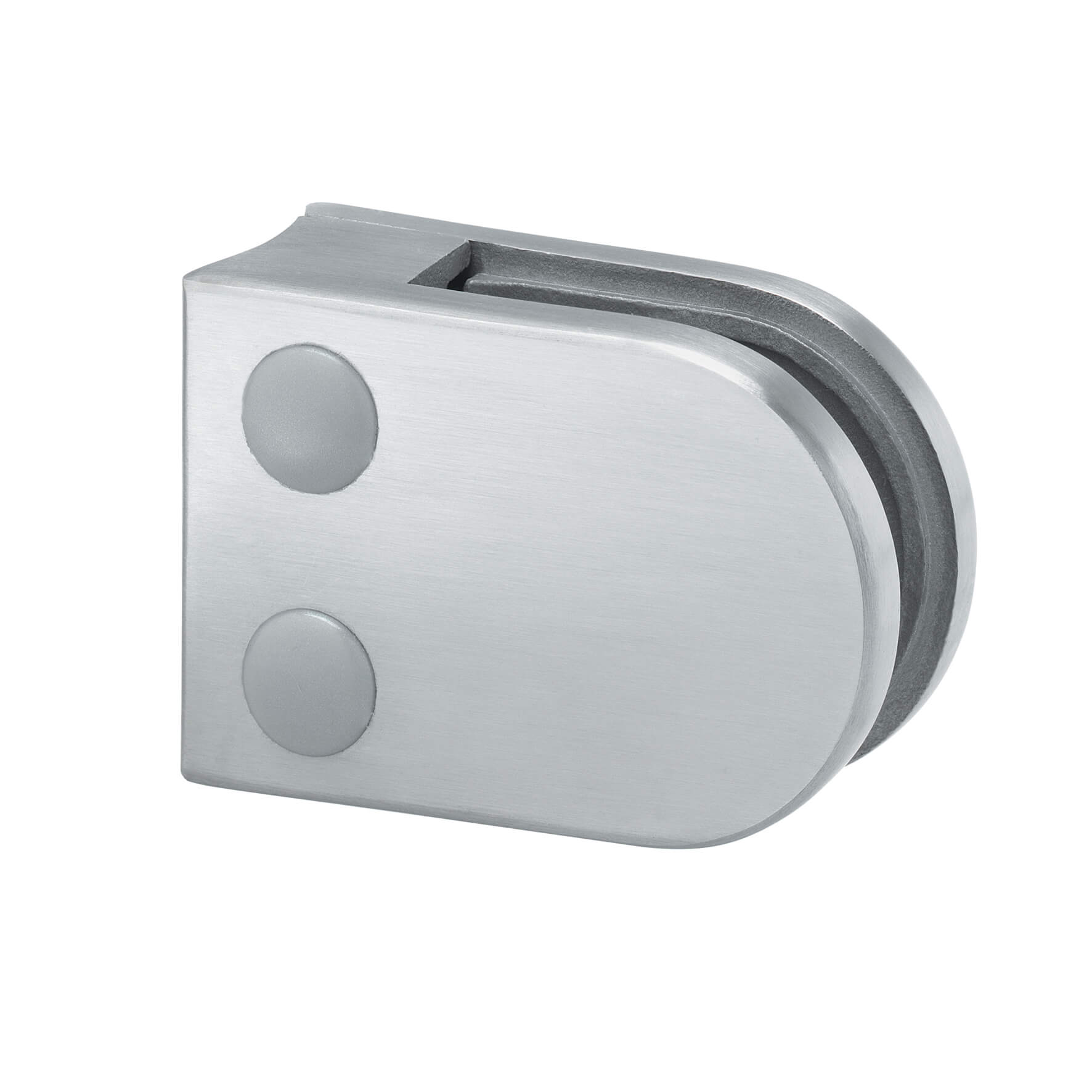

The Satin ‘D’ Shape Glass Clamp is an essential component of the Semi Frameless Glass Balustrade System. Manufactured from 316 marine grade stainless steel with a satin finish, it is designed to hold 10–12mm toughened glass panels securely in place. Supplied with gaskets to protect the glass, the clamp ensures a safe and professional installation. Compatible with all five glass colour options, it provides strength and reliability while maintaining a sleek appearance.
| Specification | Value |
|---|---|
| Material | 316 Stainless Steel |
| Colour | Stainless Steel |
| Finish | Satin (Brushed) |
| Height | 45mm |
| Width | 28mm |
| Depth | 63mm |
| Weight | 0.27kg |
| Fixing Method | Round Post |
| 'D' Shape Clamp | 1 |
It is popular for raised decking, garden terraces, and patios where a modern look, safety, and an uninterrupted view are important.
The satin stainless steel finish is low maintenance. We recommend periodic cleaning with warm soapy water and a soft cloth to remove dirt and contaminants. Avoid harsh chemicals or abrasive pads.
Installation is straightforward. Pre-drilled posts ensure accurate clamp positioning, and the system is designed for ease of assembly by competent DIYers or professional installers.
Yes. The Satin system is manufactured from 316 marine grade stainless steel, which is highly resistant to corrosion and ideal for use in exposed or coastal environments.
Yes. Laminated glass can be supplied if required, and in some installations (such as certain balconies or commercial projects) laminated glass is essential to meet regulations.
No. As each panel is cut to order, glass is non-returnable once manufactured. To avoid errors, CAD drawings are provided for your approval before cutting.
The maximum tested panel width between posts is 1100 mm when using 10 mm toughened glass with clamps. Wider spans can be supplied at customers requested but will not come with any documentation.
Glass panels are held using stainless steel ‘D’ shape clamps with protective rubber gaskets. This avoids the need for drilling into the glass and ensures a safe, professional finish.
All posts include a welded base plate, base plate cover, and glass clamps where stated. Ground fixings (such as bolts or anchors) are not supplied and should be sourced separately depending on the surface.
Yes. The Satin Semi Frameless System can be installed on staircases. We recommend fitting the posts first and then creating a template to determine the exact glass dimensions. A CAD drawing is then supplied for approval, ensuring accuracy and compliance before the glass is cut.
The system uses 10 mm toughened safety glass, available in clear, frosted, green, grey, or bronze. Each panel is cut to size, polished, and supplied with CAD drawings for approval before manufacture. The glass clamps that are supplied with this system are suitable for 10 - 12mm glass thickness’s and also laminated glass if required.
Yes. At 978mm and 1100mm heights, the Satin Semi Frameless Glass Balustrade System complies with UK Building Regulations Part K, making it suitable for raised decking, patios, balconies, and stairways.
*Heights above 600mm fall height require either a hand rail and/or laminated glass.
Yes. At 970 mm and 1100 mm heights, the Black Semi Frameless Glass Balustrade System complies with UK Building Regulations Part K, suitable for raised areas and staircases.
