- 17.5mm & 21.5mm variations
- PVB safety laminate
- Suitable for frameless balustrades
- Priced per square meter
- Ideal for domestic or commercial use
Couldn't load pickup availability

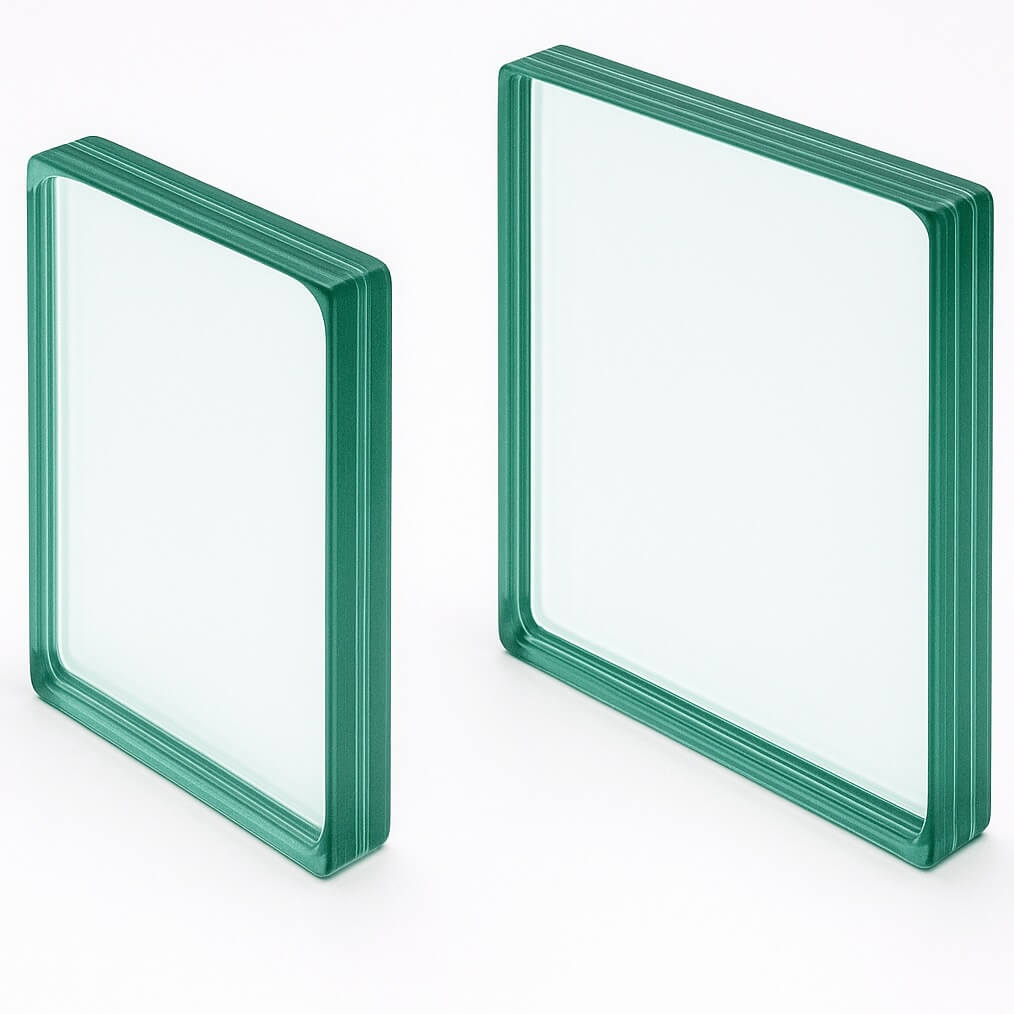

The PVB Laminate Glass Panel range, offered in both 17.5mm and 21.5mm thicknesses, is engineered specifically for premium frameless balustrade applications where safety, clarity, and structural reliability are essential. Manufactured using two sheets of toughened glass bonded with a robust PVB interlayer, these panels deliver outstanding impact resistance, enhanced acoustic performance, and excellent post-breakage behaviour, ensuring compliance with modern safety and balustrade standards. The 17.5mm option serves as an ideal mid-range thickness for most residential and light-commercial installations. Its balance of rigidity and manageable weight makes it particularly suitable for raised decks, balconies, and spigot-mounted systems that do not utilise a handrail. Its reduced flex provides a confident, stable feel while maintaining a sleek frameless finish. The heavier 21.5mm option is designed for more demanding environments, including high-wind exposure zones, long uninterrupted glass runs, elevated balconies, and commercial projects requiring strict structural testing or certification. This thickness minimises deflection under load, offering maximum stiffness and security while preserving the clean, contemporary aesthetic expected from frameless systems. Both glass options provide excellent edge stability, long-term performance, and compatibility with all approved frameless balustrade channel and spigot systems. When correctly installed, they deliver a durable, safe, and visually striking result suitable for a wide range of architectural applications.
| Specification | Value |
|---|---|
| Material | Laminated |
| Colour | Clear |
| Finish | Dubbed Corners |
| Size | Custom |
| Thickness | 17.5mm & 21.5mm |
It is popular for raised decking, garden terraces, and patios where a modern look, safety, and an uninterrupted view are important.
The satin stainless steel finish is low maintenance. We recommend periodic cleaning with warm soapy water and a soft cloth to remove dirt and contaminants. Avoid harsh chemicals or abrasive pads.
Installation is straightforward. Pre-drilled posts ensure accurate clamp positioning, and the system is designed for ease of assembly by competent DIYers or professional installers.
Yes. The Satin system is manufactured from 316 marine grade stainless steel, which is highly resistant to corrosion and ideal for use in exposed or coastal environments.
Yes. Laminated glass can be supplied if required, and in some installations (such as certain balconies or commercial projects) laminated glass is essential to meet regulations.
No. As each panel is cut to order, glass is non-returnable once manufactured. To avoid errors, CAD drawings are provided for your approval before cutting.
The maximum tested panel width between posts is 1100 mm when using 10 mm toughened glass with clamps. Wider spans can be supplied at customers requested but will not come with any documentation.
Glass panels are held using stainless steel ‘D’ shape clamps with protective rubber gaskets. This avoids the need for drilling into the glass and ensures a safe, professional finish.
All posts include a welded base plate, base plate cover, and glass clamps where stated. Ground fixings (such as bolts or anchors) are not supplied and should be sourced separately depending on the surface.
Yes. The Satin Semi Frameless System can be installed on staircases. We recommend fitting the posts first and then creating a template to determine the exact glass dimensions. A CAD drawing is then supplied for approval, ensuring accuracy and compliance before the glass is cut.
The system uses 10 mm toughened safety glass, available in clear, frosted, green, grey, or bronze. Each panel is cut to size, polished, and supplied with CAD drawings for approval before manufacture. The glass clamps that are supplied with this system are suitable for 10 - 12mm glass thickness’s and also laminated glass if required.
Yes. At 978mm and 1100mm heights, the Satin Semi Frameless Glass Balustrade System complies with UK Building Regulations Part K, making it suitable for raised decking, patios, balconies, and stairways.
*Heights above 600mm fall height require either a hand rail and/or laminated glass.
Yes. At 970 mm and 1100 mm heights, the Black Semi Frameless Glass Balustrade System complies with UK Building Regulations Part K, suitable for raised areas and staircases.
