- Swageless mechanical grip
- For 3mm wire rope
- Compact end termination
- 316 stainless steel
- Suits modern cable balustrades
Couldn't load pickup availability

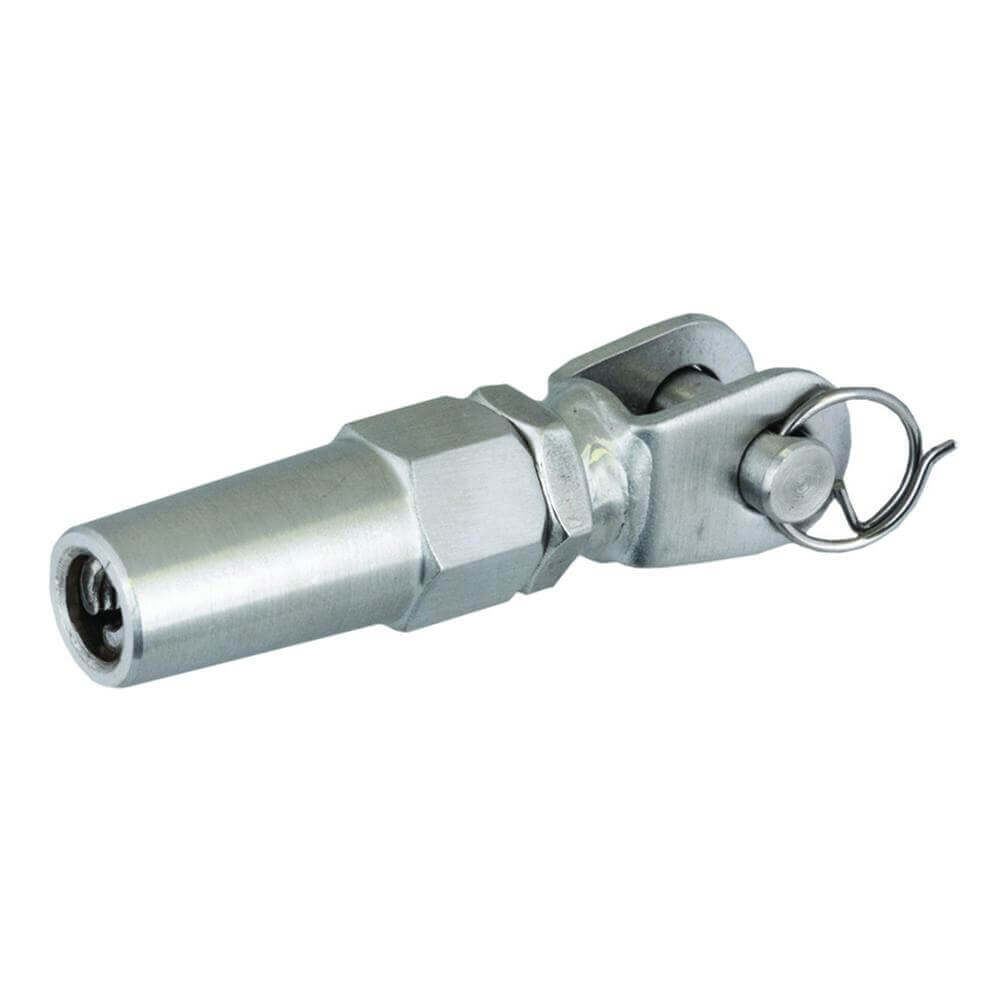

The Swageless Plain Buckle Connector for 3mm Wire is a compact, high-strength termination fitting used in contemporary stainless steel wire balustrade systems. Manufactured from premium 316 marine-grade stainless steel, it provides outstanding corrosion resistance and structural reliability in outdoor and coastal environments. This connector uses a swageless mechanical grip, allowing installers to secure 3mm wire rope without specialised swaging tools. This makes it an excellent choice for sites with restricted access or projects requiring fast, tidy installation. The plain buckle functions as a fixed, non-adjustable end fitting and is normally paired with a tension adjuster—such as a turnbuckle—on the opposite end of the cable run. Its slim, unobtrusive body maintains a minimal architectural look while delivering consistent mechanical anchoring. This fitting is suitable for stair infills, balcony guards, terrace perimeters, and light commercial cable railing systems. Compatible with all standard 3mm wire rope components and accessories, the swageless plain buckle connector integrates seamlessly with other fittings to deliver a clean, modern and low-maintenance balustrade solution.
| Specification | Value |
|---|---|
| Material | 316 Stainless Steel |
| Type | Swageless inline connector |
| Wire Size: | 3mm |
| Function | Connects wire runs without swaging |
| Installation | Mechanical grip |
| Finish | Satin |
All wire rope used in this system is manufactured from 316 marine‑grade stainless steel for maximum corrosion resistance.
Yes. All primary components are 316 stainless steel, making the system suitable for harsh coastal and marine environments.
Yes. Installers can cut the 3mm stainless wire rope to any required length using appropriate stainless‑rated cutting tools.
Yes. All fittings are designed for universal compatibility with standard 3mm 316 stainless steel wire rope.
Yes. All posts are supplied fully assembled with welded base plates and plain tops, ready for installation.
Only basic tools are required. Swageless connectors eliminate the need for hydraulic swaging equipment.
Yes, when installed correctly with appropriate handrails and infill spacing, the system meets UK balustrade safety requirements.
Yes. The wire rope system can be installed on straight runs, ramps, and staircases using compatible angled fittings.
316 stainless steel requires minimal maintenance—periodic cleaning with warm soapy water is usually sufficient.
Yes. Wire rope sections can be mixed with glass balustrade sections to create hybrid designs.
Yes. All 316 stainless steel posts in this system are fully suitable for outdoor use, including coastal and high‑exposure environments.
No. End posts, start posts, and corner posts always require eyebolts because they anchor and tension the wire. Mid posts usually do NOT require eyebolts, as the wire typically passes straight through the centre of the post. In certain cases—such as very long runs or unique configurations—mid posts may also use eyebolts, but this is not the standard setup.
